WeiCai LCD Repair Laser Machine

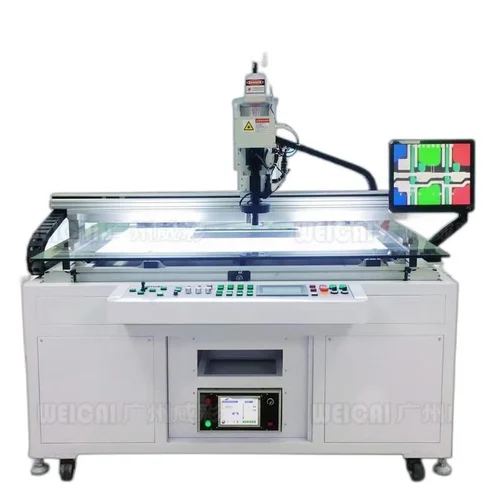

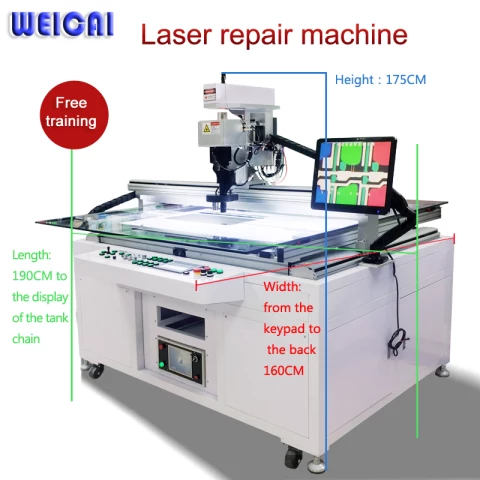

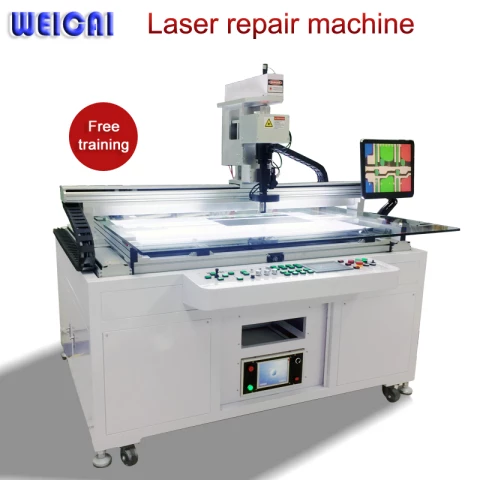

WeiCai Model CR-512D LCD Repair LASER MACHINE

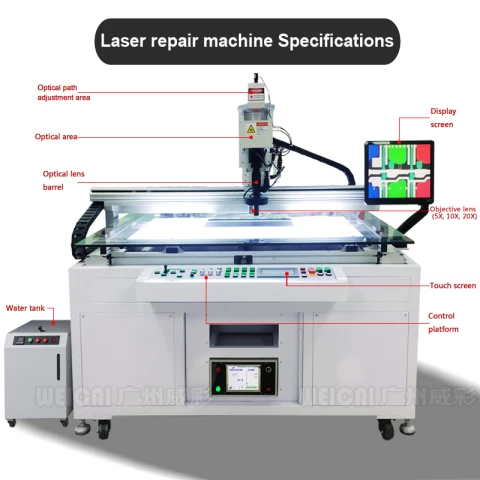

WeiCai LCD Repair Laser Machine Features::

1. Precise Electric Controlled Microscope, Lens Switched by One time mouse click.
2. LASER Working Size Electric control
3. Big Size working Stage for LCD Panel.
4. Inbull damping device to avoid images shaking.
5. XYZ Axis moving speed can be adjustable and easy to be switched.
6. Lens automatic switched and focus fast.
7. High resolution CCD Monitor with good quality images

This WeiCai LCD Repair LASER MACHINE is equipped state of art control system from research and development including Laser Head (HOYA Laser controller), MITUTOYO precision optical, imaging system (laser processing / observing special microscope, laser processing special optical lens, image observation objective lens), X/Y/Z motor drive system, Electronic control systems.

What can a LCD laser repair machine repair?

Defective Colour Lines (Horizontal lines and Vertical lines), White spots, Bright line, Half line, multi line, Dotted line, etc. caused by short circuit or impurities.
Support Display TFT-LCD, IPS, LTPS, OLED, etc
Support LG, Samsung, Toshiba, Sony, CHANGHONG, TCL, Haier, Skyworth, Hiseries, Konkaand other all brand LCD Display
Support MAX 100inch Size LCD.
Support 2K, 4K LCD

Get the best deal!

Kindly Submit the form. Our team will contact you soon.

Product Description

Working platform size:1260 mm X 1200 mm
Laser have 1 Million Shots
Platform material:Precision lapping optical glass platform
Platform base:Precision sheet metal base
XY axis effective stroke:1260 mm X 1000mm
XY axis driver form:Servo motor system with confidential screw
XY axis minimum resolution:1um/pulse
Reproducibility is less than or equal to 5 um
Z axis maximum stroke:100mm
Z axis driver form:Servo motor system with confidential screw
Z axis minimum resolution:0.1um/pulse
Based on the actual design configuration

Call Now

Whatsapp 1

Whatsapp 2

Laser current:	＜=20A	Lasing mode	Multi-mode
Laser voltage	AC220V 50HZ	Output Energy	1064nm@80-350mJ 532nm@60-280mJ
Power of the machine	Less than = 2,500 W	Energy stability	Less than =1%@1064nm / 532nm
Laser lamp	F7-85-155	Operate mode	Work intermittently, continuous working time maximum 50min and stop minimum 10min
wavelength	1064NM 532NM	Cooling-down method	Hydrocooling
Repeat frequency rate	1-30HZ	Water flow	5L/Min
Pulse length	0.1-1.0NS	Water pressure	Less than=0.1Pa
Tune Q way	Active Q	Water tank capacity	6L
X axis itinerary	800MM	Y axis itinerary	1400MM
The X manually moves the trip	800MM	Z axis itinerary	230MM
Packing specifications	1900-1800-1800MM	Weight	835KG

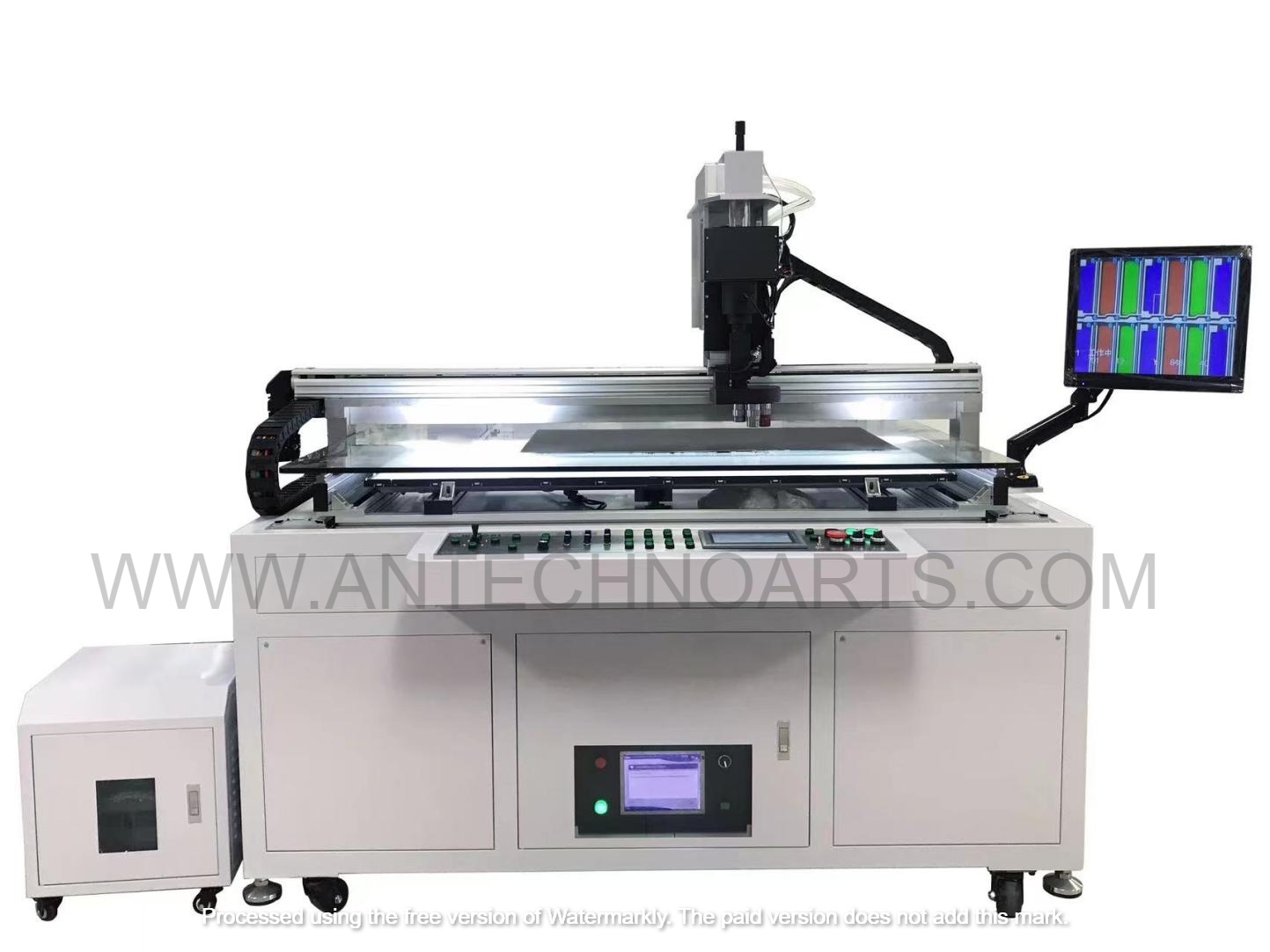

WeiCai AN-512 DQ-30 Advance LCD Repair LASER MACHINE

Use range of the equipment:

Scope, (TV, PC, touch teaching machine, splicing, notebook,
digital, car display products) LCD internal line defects caused LCD
screen window, vertical line, line, cross, half line, the size of the
head line or LCD screen built-in GOA structure caused by black
screen, gray screen, net coarse, picture jitter, level uneven display,
and a series of screen substrate internal line problems caused by
fault phenomenon.

Scope 2. Abnormal vertical line, no display, and other adverse
faults occurred in TFT \ OLED mobile phone screen and wearable
products.

Laser type: single modulation Q (crystal 5MM) semiconductor
laser ND-YAG, specific parameters are as follows:

Applicable LCD panel size 85 inches and below
Digital spot, electronic light brake red light can remember 5 kinds of spot specifications
Spot system: Weicai developed from the 4th generation
Light source: red light (laser spot labeling) upper light source (cold white light irradiation) lower light source (58-inch backlight, highlighted LED light bar)

Optical imaging system

Type: Microscopy imaging module XF-VM 3-1 XCV 6.3
Objective lens switching system: precision 4-hole / electric switching type (linear)
Precision objective lens group: 5 times, 10 times, and 20 times
Enpiece type M Plan APO 5X 10X observation (visible)
Eye type M Plan NIR 20X laser processing (NIR
CCD: BNG connector 1200lines / colors
Monitor display: 17inches (4:3) LCD

Processing and loading stage and drive system

Size of working platform: 1800 mm-1530 mm
Table carrier material: precision grinding optical glass platform
Platform base: precision steel structure
Sports system: private service control + precision linear wire guide rail module box
Motion control: set 4-gear conversion (ultra low speed, medium speed, high speed, super high speed)

Focus system

Focus type: electric point control / knob control focus

The shock absorber system

Form of shock absorber: the vibration transmitted by 4 air bags
Natural frequency (vertical / horizontal): 2~2.3 Hz (Equipment level:B)

Supply electricity

AC 220 V ± 10%, 50 HZ / 60HZ 20A power supply connector M6 terminal table

Ground wire JIS grade 1,8 mm sq

Laser current:	＜=20A	Lasing mode	Multi-mode
Laser voltage	AC220V 50HZ	Output energy	1064nm@100-500mJ 532nm@50-250mJ
Power of the machine	Less than = 1,000 W	Energy stability	Less than =3%@1064nm / 532nm
Laser lamp	F7-85-155	Operate mode	Work intermittently, continuous working time maximum 50min and stop minimum 10min
Wavelength	1064NM 532NM	Cooling-down method	Hydrocooling
Repeat frequency rate	1-10HZ	Water flow	5L/Min
Pulse length	8-15NS	Water pressure	Less than=0.1Pa
Tune Q way	Active Q	Water tank capacity	6L
X axis itinerary	800MM	Y axis itinerary	1400MM
The X manually moves the trip	800MM	Z axis itinerary	230MM
Packing specifications	1900-1800-1800MM	Weight	850KG

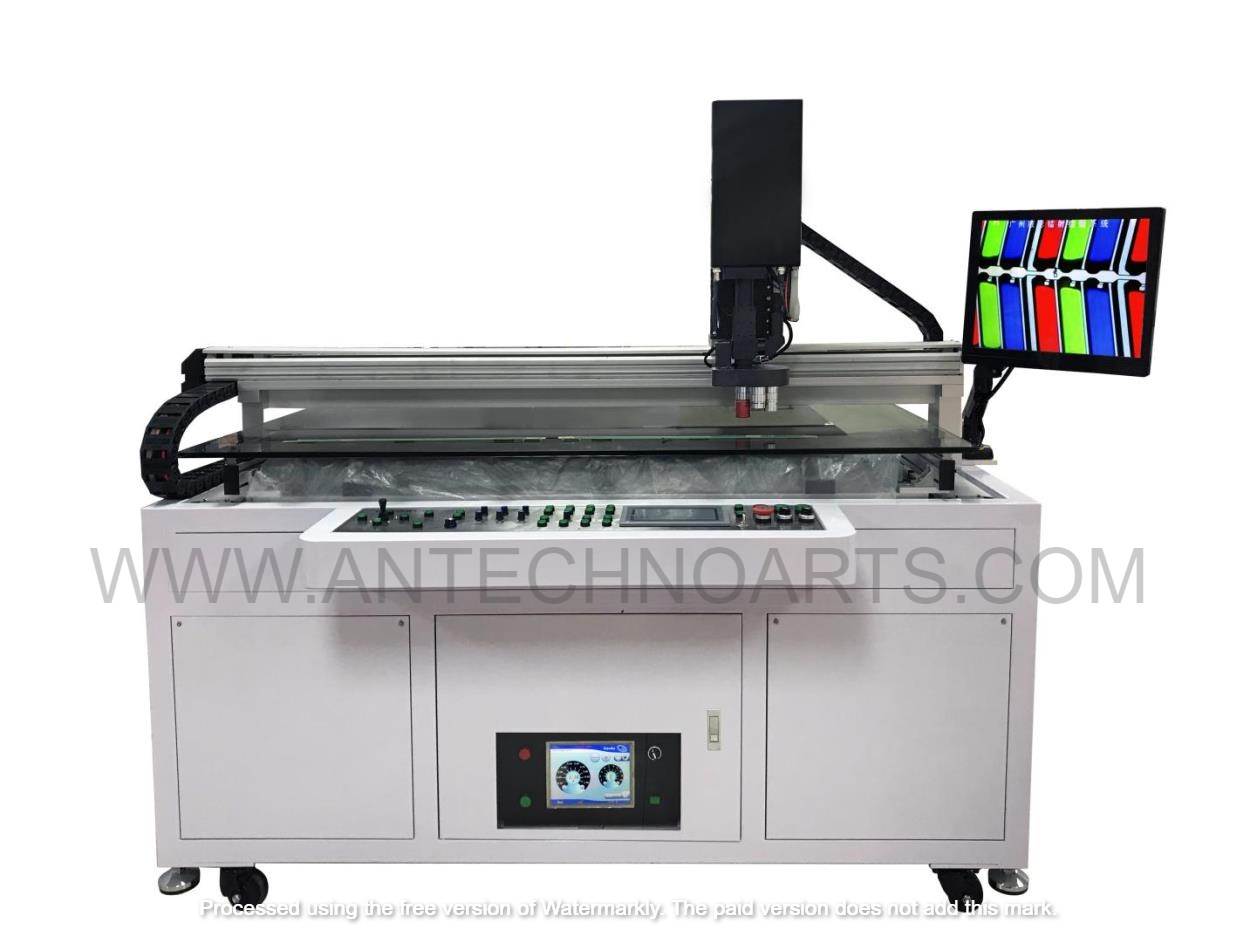

WeiCai AN-512 DQ-10 Advance LCD Repair LASER MACHINE

Product application:

Mainly in the mirror through the high frequency pulse laser
beam of the LCD internal semiconductor circuit of the micron size
of cutting and trim especially passivation layer (silicon oxide /
nitride) and metal interconnection to achieve the role of line
maintenance, the device can adjust the laser pulse energy and
wavelength for different target materials.

Equipment use

It is mainly caused by the internal line defects of the LCD
screen, including LCD screen highlights, vertical line, horizontal line,
cross line, half line, black screen, gray screen, screen thickness,
picture jitter, uneven display, and a series of screen and internal
line problems of the screen substrate.

Laser type: single channel modulation Q (crystal 6MM)
semiconductor laser ND-YAG, specific parameters are as follows:

Applicable LCD panel size 85 inches and below
Point (3um X 3um), horizontal and vertical lines (50um X 3um long),
block (50um X 50um)
Digital spot, electronic light brake red light can remember 5 kinds
of spot specifications
Spot system: Weicai is developed from the 3rd generation
Light source: red light (laser spot labeling) upper light source (cold
white light irradiation) lower light source (58-inch backlight,
highlighted LED light bar)

Optical imaging system

Type: Microscopy imaging module XF-VM 3-1 XCV 6.3
Objective lens switching system: precision 4-hole / electric
switching type (linear)
Precision objective lens group: 5 times, 10 times, and 20 times
Enpiece type M Plan APO 5X 10X observation (visible)
Eye type M Plan NIR 20X laser processing (NIR)
CCD: BNG connector 1200lines / colors
Monitor display: 17inches (4:3) LCD

Processing and loading stage and drive system

Size of working platform: 1800 mm-1530 mm
Table carrier material: precision grinding optical glass platform
Platform base: precision steel structure
Sports system: private service control + precision linear wire guide rail module box
Motion control: set 4-gear conversion (super low speed, medium speed, high speed, super high speed)

Focus system
