WeiCai CR-815 SH

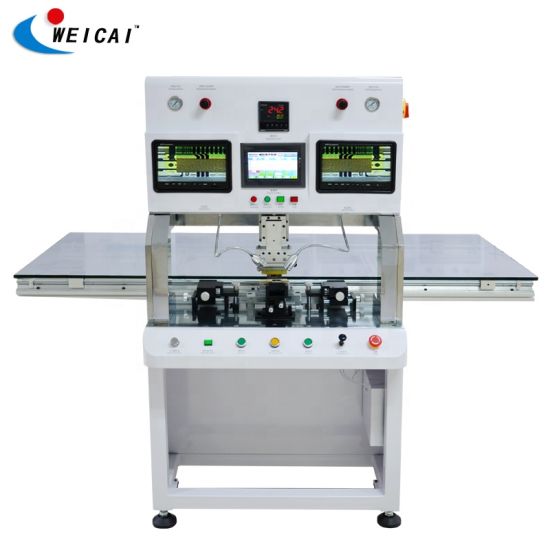

WeiCai CR-815SH LED/LCD Panel Repair Bonding Machine
Device Model: CR-815SH
Device Description: LCD Screen repair machine, COF/TAB bonding equipment etc.
Uses of LED/LCD Panel Repair Bonding Machine: This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display, horizontal, half breakdown maintenance.
Device Features: Single head ,single pneumatic device, single temperature control
Multi-speed pulse source design to meet the power requirements of diversified product pressure
Repairing Capacity: Up to 100 Panel per day
Get the best deal!
Kindly Submit the form. Our team will contact you soon.
Product Description
- Applicable LCD Size: 0.3MM-1.1MM[Single glass]
- Applicable LCD Panel Thickness: 0.3-1.1mm
- Heating Mode: Pulse Heat
- Working Precision: ± 0.015mm
- Machine Size: 860*860*1450mm
- Weight: 250 KG
- Input Power: 3500W
- Rate Power(W): AC 220V
- Work Pressure: 0.1~0.7Mpa Dry air source
- Operation Mode: 7 inch touch screen control
- Alignment System: 2 High Definition C/LCCD Camera
- Temperature error range: ± 0.5deg C
- TAB Fixture: Micrometer X,Y,Z axis adjust
- Platform Moving: Manual Operation
- Hot press head size: 50*1.4*10mm
- Warranty: 1 Year
WeiCai CR-816SH
WeiCai CR-816SH LED/LCD Panel Repair Bonding Machine
Device Model: CR-816SH
Device Description: Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.
Uses of LED/LCD Panel Repair Bonding Machine: This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.
Device Features: Single head ,single pneumatic device, single temperature control
Multi-speed pulse source design to meet the power requirements of diversified product pressure
WeiCai CR-818SH
WeiCai CR-818SH LED/LCD Panel Repair Bonding Machine
Device Model: CR-818SH
Device Description: Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.
Uses of LED/LCD Panel Repair Bonding Machine: This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.
Device Features: Single head ,single pneumatic device, single temperature control
Multi-speed pulse source design to meet the power requirements of diversified product pressure
Product Specification
Capacity: 0-100 pouch per hour
Camera: 200-300 continous zoom
Material Titanium Alloy
Packaging Type: New
Platform Sliding: X and Y (Moveable)
Brand: Weicai
Weight: 300kg
WeiCai CR-880SH
WeiCai CR-880SH LED/LCD Panel Repair Bonding Machine
Device Model: CR-880SH
Device Description: Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.
More Features
- Applicable LCD Size: Max 100 Inches
- Applicable LCD Panel Thickness: 0.3-1.1mm
- Machine Size: 1240*840*1680mm
- Heating Mode: Pulse Heat
- Weight: 430Kg
- Warranty: One Year
WeiCai CR-880SH
WeiCai CR-880DH LED/LCD Panel Repair Bonding Machine
Device Model: CR-880DH
Device Description: Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.
More Features
- Applicable LCD Panel Specification: 15″-65″(Platform Expandables)
- Applicable LCD Panel Thickness: 0.3-1.1mm(Single Glass)
- Machine Size: 1240*840*1680mm
- Bonding Direction: X or Y Unidirection
- Production beat: TAB, 100pcs/H
- Bonding Accuracy: ±1.5 μm
- Body Size: 1800*1200*1520mm(L*W*H)
